NOBL MANUALS - VACUUM TRAVEL COMPRESSION SET

1. Introduction

Welcome to the NOBL family! Thank you for purchasing the NOBL Vacuum Pump. Designed for the modern traveler, this compact vacuum pump offers portability, convenience, and smart features to compress your luggage and maximize packing space. This manual will guide you through the functionality and care of your new Vacuum Pump.

2. DImensions

WEIGHT - 0.5 LBS

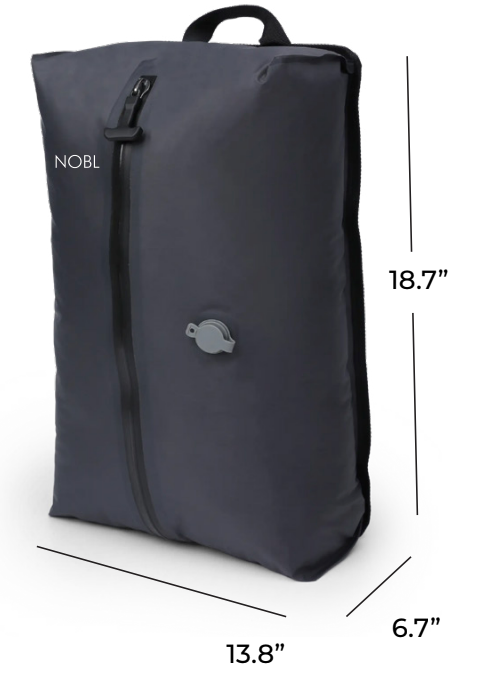

VACUUM COMPRESSION BAG

WEIGHT - 0.4 LBS

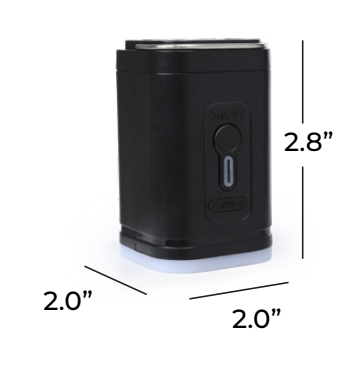

PORTABLE VACUUM

NOZZLE

3. Features

Portable Design:

Compact and lightweight for easy travel.

Rechargeable Battery:

Built-in battery for cordless operation.

Travel Lock Function:

Prevents accidental activation in baggage.

LED Indicator Light:

Shows charging status and operation mode.

One-Touch Operation:

Simple power switch for easy use.

Universal Compatibility:

Works with vacuum compression bags.

4. Usage Instructions

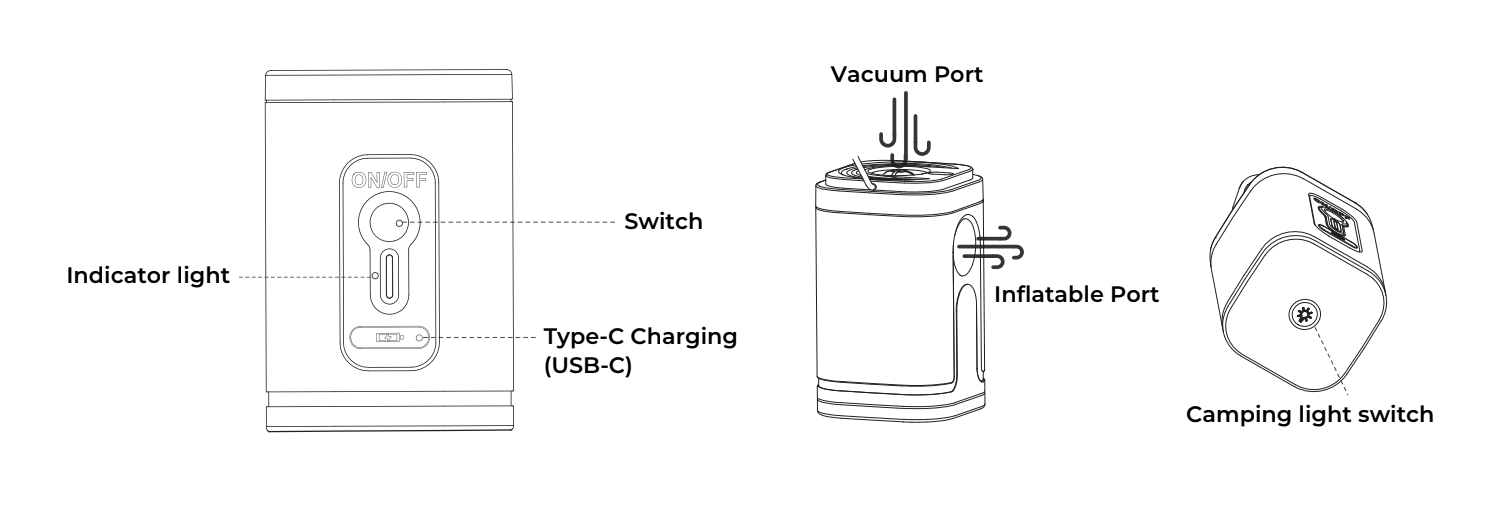

How to Set

In order to achieve optimal performance, it is suggested that the air pump be fully
charged before first use.

IMPORTANT – HOW TO POWER THE PUMP

DOUBLE-PRESS the button to turn it ON
SINGLE-PRESS to turn it OFF
1. Fill Your Bag: Unzip the bag and pack your items. Softer items like t-shirts and
sweaters compress best, while bulkier items like jeans may not flatten as much. Avoid
overfilling to leave room for compression.
2. Seal the Zipper: Slide the zipper all the way closed to the very top.
3. Attach the Pump Nozzle: Install the round plastic fitting into the top of the pump
by pushing it firmly into place.
4. Start the Vacuum: Open the valve cap on the bag and double-press the button on
the pump to turn it on. While the pump is running, ensure you keep it firmly pressed
against the valve to maintain the seal.
5. Complete Compression: Once the air has been removed and the bag is tight, take
the pump off and press the power button once to turn it off, then finish by closing the
valve cap tightly.

Low power indicator

The red light is on, indicating that the battery
less than 5% and need to be charged in time
INPUT: 5V = 1A

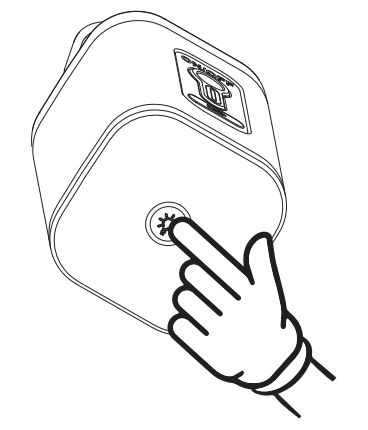

Camping Light Mode

1. First Brightness Level: Long press and hold the button to
activate the camping light. Release after 3 seconds to turn on
the first (lowest) brightness level.
2. Second Brightness Level: Click the switch once to increase
to the second (medium) brightness level.
3. SOS Flash Mode: Click the switch again to activate the SOS emergency flash
mode. This strobe pattern can be used to signal for help in emergency situations.
4. Turn Off Light: Click the switch one more time to turn off the camping light
completely.

5. The Nozzle

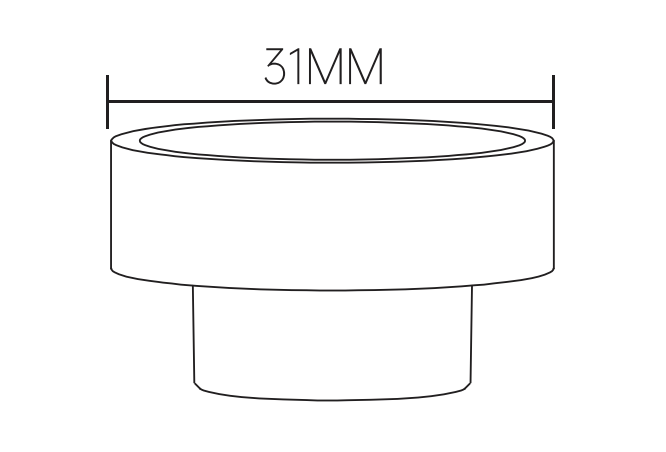

Your NOBL Vacuum Pump comes with a 31mm nozzle specifically designed for vacuum storage bags. This universal nozzle is compatible with most standard vacuum compression bags for travel and storage.

Installation
Install the round plastic fitting into the top of the pump by pushing it firmly into place.
Ensure it is securely attached before operating the vacuum pump.

6. Locking

How to Lock (Enable Travel Lock)
This product is equipped with a travel lock function to avoid accidental start in
baggage.
1. Ensure the device is in the OFF state.
2. Long press the switch for 3 seconds.
3. The motor will not rotate, and the indicator light will flash.
4. The device is now in travel lock mode.

How to Unlock (Disable Travel Lock)
1. When the travel lock is active (locked state).
2. Long press the switch for 3 seconds.
3. The indicator light will flash.
4. The device exits travel lock state and can be used normally.

7. Maintenance

Cleaning: Wipe the exterior with a damp cloth. Avoid harsh chemicals.
Storage: Store in a cool, dry place when not in use.
Handling: Avoid overpacking to prevent damage to locks and compartments

8. Troubleshooting

Locks not opening?

Double-check your combination.
Clear any debris obstructing the lock system.

9. Warranty and Customer Support

Your NOBL luggage comes with a Lifetime Warranty over manufacturing defects in materials and workmanship for the product’s full useful life. Lifetime Warranty covers defects in materials and workmanship that affect the performance or function of your
NOBL luggage including wheels, handles, zippers, locks, or structural issues.

For support, contact us at:
hello@nobltravel.com

Thank you for choosing Nobl Travel!
We hope your new luggage enhances your travel experiences.
